1 Phase Control-/ Isolating Transformer, Safety Transformer, slim design for DIN rail mountingSTHN 63 - 260VA IEC/DIN EN61558-2-2 /-4 /-6 and UL1446

overviewtechnical dataPDF data sheet

1 phase control transformer

according to IEC/EN61558-2-2 for power supply of control circuits in machinery, terminal blocks (VDE0113/ EN60204)

Isolating transformer

according to IEC/EN61558-2-4 for general applications, e.g. electric (galvanic) isolation for devices according to VDE0700/ EN60335.

Safety transformer

according to IEC/EN61558-2-6 for general applications with double or enhanced insulation and max. 50V output voltage, e.g. electric (galvanic) isolation for devices according to VDE0805/EN60950.

Specifications

  • Due to the use of high quality insulating materials and special insulation design, ST series can be used as control-, isolating or safety transformer.
  • Our UL insulation system guarantees global application possibilities.
  • Inrush currents and short circuit behaviour are optimised for use with motor-circuit switches, especially equipped with primary circuit thermal or magentic switching functions.
  • Transformers are fully vacuum impregnated.
  • Screw terminals contact proof according to VBG4.
  • For voltage adjusting purposes, primary winding offers taps at ±5% of nominal input voltage.
  • Transformers are protection class I ready.
  • blade terminals for ground wire connection.

    2 blade terminals 6.3 x 0.8 for ground wire connection.

  • TS35 DIN rail mounting, any mounting position or angle possible







1 Phase Control-/ Isolating Transformer, Safety Transformer slim design suitable for DIN rail mounting IEC/EN61558-2-2/-4/-6 UL1446

Input voltage100 V … 600 V  +/-5%
Output voltage12 V … 600 V
Rated frequency50/60 Hz
Output power63 VA … 260 VA
Max. ambient temperature40°C
UL insulation systemB3 Standard
Insulation class (IEC85)B 130°C
Fire protection classUL94HB (V-0 possible)
Open transformer
degree of protection		IP00
Protection classI ready
  • Welded ground wire connection, 2 blade terminals 6.3 x 0.8mm
  • TS35 DIN rail mounting
  • Screw terminals contact proof according to BGV A3
  • Transformer completely vacuum impregnated

Overview: PRI 230V / SEK 24V

Rated
power
VA
Short-time
power
at cos (phi) 0.5
VA
Short circuit
voltage
Uk %
Rated input
current
at 230V
A


Transformer
safety switch
e.g. PKZM0

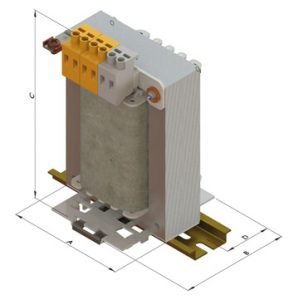

Dimensions
approx. mm
Cu
weight
KG


Total
weight
KG


Type and
Ordering No.
A
B
C
D
63
140
9,82
0,35
0,25-0,4/ 0,4
66
57
112
35
0,28
1,2
STHN006230024
100
218
10,2
0,52
0,4-0,63/ 0,63
66
68
112
35
0,34
1,7
STHN010230024
160
363
8,6
0,81
0,62-1/ 0,95
84
66
133
35
0,62
2,45
STHN016230024
220
565
6,6
1,08
1-1,6/ 1,2
84
80
133
35
0,75
3,2
STHN022230024
260
658
7
1,25
1-1,6/ 1,3
84
80
133
35
0,75
3,2
STHN026230024

Overview: PRI 400V / SEK 24V

Rated
power
VA
Short-time
power
at cos (phi) 0.5
VA
Short circuit
voltage
Uk %
Rated input
current
at 230V
A
Transformer
safety switch
e.g. PKZM0
Dimensions
approx. mm
Cu
weight
KG
Total
weight
KG


Type and
Ordering No.
A
B
C
D
63
138
10
0,2
0,16-0,25/ 0,25
66
57
112
35
0,28
1,2
STHN006400024
100
217
10,3
0,3
0,25-0,4/ 0,4
66
68
112
35
0,34
1,7
STHN010400024
160
365
8,3
0,46
0,4-0,63/ 0,55
84
66
133
35
0,62
2,45
STHN016400024
220
563
6,6
0,62
0,63-1/ 0,75
84
80
133
35
0,75
3,2
STHN022400024
260
650
7,2
0,72
0,63-1/ 0,8
84
80
133
35
0,75
3,2
STHN026400024

Overview: PRI 400V / SEK 230V

Rated
power
VA
Short-time
power
at cos (phi) 0.5
VA
Short circuit
voltage
Uk %
Rated input
current
at 230V
A


Transformer
safety switch
e.g. PKZM0
Dimensions
approx. mm
Cu
weight
KG


Total
weight
KG


Type and
Ordering No.
A
B
C
D
63
138
10
0,2
0,16-0,25/ 0,25
66
57
112
35
0,28
1,2
STHN006400230
100
217
10,3
0,3
0,25-0,4/ 0,4
66
68
112
35
0,34
1,7
STHN010400230
160
365
8,3
0,46
0,4-0,63/ 0,55
84
66
133
35
0,62
2,45
STHN016400230
220
563
6,6
0,62
0,63-1/ 0,75
84
80
133
35
0,75
3,2
STHN022400230
260
650
7,2
0,72
0,63-1/ 0,8
84
80
133
35
0,75
3,2
STHN026400230

To the data sheet
