1 phase control transformer
according to IEC/EN61558-2-2 for power supply of control circuits in machinery, terminal blocks (VDE0113/EN60204).
Isolating transformer
according to IEC/EN61558-2-4 for general applications, e.g. electric (galvanic) isolation for devices according to VDE0700/EN60335.
Specifications
- Due to the use of high quality insulating materials and special insulation design, ST series can be used as control-, isolating or safety transformer.
- Our UL insulation system guarantees global application possibilities.
- Inrush currents and short circuit behaviour are optimised for use with motor-circuit switches, especially equipped with primary circuit thermal or magentic switching functions.
- Transformers are fully vacuum impregnated.
- Screw terminals contact proof according to VBG4.
- For voltage adjusting purposes, primary winding offers taps at ±5% of nominal input voltage.
- Transformers are protection class I ready.
- blade terminals for ground wire connection.
blade terminals for ground wire connection.
- Mounting via angle brackets, any mounting position or angle possible.
The mounting position must be chosen so that a natural convection through the cooling channels can take place!
blade terminals for ground wire connection.
1 phase control-/isolating transformer, safety transformer
according to IEC/EN61558-2-4-6
- Welded ground wire connection 2 blade terminals 6.3 x 0.8 mm
- Mounting via angle brackets in any mounting position or angle possible
- Screw terminals contact proof according to VBG4
- Transformer completely vacuum impregnated
Overview: PRI 400 V / SEK 230 V (yellow coloured rows: storage types)

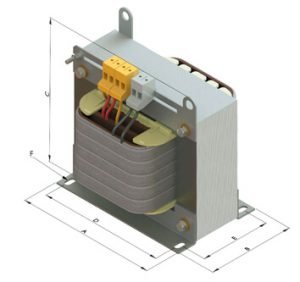

Rated power VA | Short-time power at cos (phi) 0.5 VA | Rated input current A at 400 V | Dimensions approx. mm | Cu weight KG | Total weight KG | Type and Ordering No. | |||||
A | B | C | D | E | F | ||||||
3.200 | 8.900 | 8,25 | 192 | 182 | 175 | 150 | 148 | 10,0×18,0 | 4,8 | 25,9 | ST320400230 |
4.000 | 11.000 | 10,5 | 192 | 182 | 175 | 150 | 148 | 10,0×18,0 | 6,3 | 26,9 | ST400400230 |
