Isolating Transformer
according to IEC/EN61558-2-4 for general applications, e.g. galvanic isolation for devices according to VDE0700/EN60335 regulations.
Safety Transformer
according to IEC/EN61558-2-6 for general applications with double or reinforced insulation and max. output voltage of 50 V, e.g. galvanic isolation for devices according to VDE0805/EN60950 regulations.
Specifications
- Connections: PCB with solder pins Ø 0.8mm. Recommended board mounting holes: 1.2mm.
- Encapsulated coil (mounting according to protection class II or III ready) allows mounting of other components close to the transformer.
- Due to innovative vacuum impregnation in polyester varnish, the noise level is extraordinary low.
- Any mounting position or angle possible.
- Version 0.8/-1.5 VA construction determinded short circuit proof. Short-circuit proof design for other versions with higher load on request (combined with external fuse and built-in temperature limiter)
- Catalog mentioned lead-wire spacing and pin assignment is standard.
- We recommend bold distance mounting for sizes > 4.4VA.
- To improve mechanic foothold on the boards additional solder pins can be attached to the transformer – on request.
1 phase isolating-/ safety PBC transformer according to IEC/EN61558-2-4; EN61558-2-6
| Input voltage | 100 … 400V ( 1 winding ) | |
| Output voltage | 6 … 50V ( 1 oder 2 windings ) | |
| Rated frequency | 50/60 Hz | |
| Power range | 0,8 … 56VA | |
| Max. ambient temperature | 40°C | |
| UL-Isolationssystem (optional) | OBJY2.E181051 |  |
| Insulation class (IEC85) | B 130°C |  |
| Fire protection class | UL94HB (V-0 possible) | |
| Protection class (ready) | II bzw. III | |
- Any mounting position or angle possible
- Connections: Solder pins (ø 0.8mm) for pcb mounting
- Transformer completely vacuum impregnated
Ua = Rated output voltage
| Power VA |
Open-circuit voltage Ua X … |

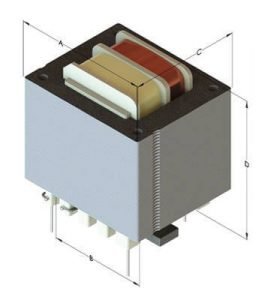

Dimensions approx. mm |
Copper weight KG |
Total weight KG |
Core size | Type | ||||||
| A | B | C | D | a | b | c | ||||||
| 0,8 | 1,50 | 30,0 | 28,5 | 32,0 | 21,0 | 20,0 | 10,0 | 20,0 | 0,01 | 0,08 | EI30/10,5 | PT008 |
| 1,0 | 1,70 | 30,0 | 28,0 | 32,0 | 23,0 | 20,0 | 10,0 | 20,0 | 0,012 | 0,09 | Ei30/12,5 | PT010 |
| 1,2 | 1,43 | 38,0 | 27,0 | 38,0 | 20,0 | 20,0 | 10,0 | 25,0 | 0,02 | 0,10 | EI38/7,5 | PT012 |
| 1,5 | 1,63 | 30,0 | 28,5 | 32,0 | 26,0 | 20,0 | 10,0 | 20,0 | 0,012 | 0,11 | EI30/15,5 | PT015 |
| 1,8 | 2,20 | 42,0 | 30,7 | 35,4 | 23,4 | 25,0 | 15,0 | 25,0 | 0,023 | 0,12 | EI42/8,5 | PT018 |
| 2,0 | 1,58 | 30,0 | 28,5 | 32,0 | 29,0 | 20,0 | 10,0 | 20,0 | 0,012 | 0,12 | EI30/18,5 | PT020 |
| 3,2 | 1,64 | 38,0 | 27,0 | 38,0 | 26,2 | 20,0 | 10,0 | 25,0 | 0,025 | 0,14 | EI38/13,5 | PT032 |
| 4,2 | 1,50 | 38,0 | 27,0 | 38,0 | 29,2 | 20,0 | 10,0 | 25,0 | 0,025 | 0,16 | EI38/16,5 | PT042 |
| 4,4 | 1,51 | 42,0 | 30,7 | 35,4 | 29,5 | 25,0 | 15,0 | 25,0 | 0,03 | 0,18 | EI42/14,8 | PT044 |
| 5,2 | 1,49 | 38,0 | 27,0 | 38,0 | 33,2 | 20,0 | 10,0 | 25,0 | 0,03 | 0,19 | EI38/20,5 | PT052 |
| 5,3 | 1,51 | 48,0 | 33,7 | 43,0 | 29,3 | 25,0 | 15,0 | 27,5 | 0,035 | 0,21 | EI48/12,5 | PT053 |
| 6,8 | 1,43 | 42,0 | 30,7 | 35,4 | 34,8 | 25,0 | 15,0 | 25,0 | 0,035 | 0,24 | EI42/20 | PT068 |
| 8,0 | 1,36 | 48,0 | 33,7 | 43,0 | 33,7 | 25,0 | 15,0 | 27,5 | 0,042 | 0,26 | EI48/16,8 | PT080 |
| 9,3 | 1,38 | 54,0 | 37,0 | 45,5 | 32,3 | 30,0 | 20,0 | 30,0 | 0,055 | 0,28 | EI54/14 | PT093 |
| 11,5 | 1,30 | 48,0 | 33,7 | 43,0 | 37,3 | 25,0 | 15,0 | 27,5 | 0,055 | 0,32 | EI48/20,5 | PT115 |
| 13,0 | 1,31 | 54,0 | 37,0 | 45,5 | 37,4 | 30,0 | 20,0 | 30,0 | 0,065 | 0,34 | EI54/18,8 | PT130 |
| 14,0 | 1,27 | 48,0 | 33,7 | 43,0 | 42,3 | 25,0 | 15,0 | 27,5 | 0,065 | 0,40 | EI48/25,5 | PT140 |
| 16,0 | 1,25 | 60,0 | 42,5 | 50,0 | 37,5 | 30,0 | 20,0 | 32,5 | 0,090 | 0,43 | EI60/16 | PT160 |
| 18,0 | 1,24 | 54,0 | 37,0 | 45,5 | 43,8 | 30,0 | 20,0 | 30,0 | 0,072 | 0,48 | EI54/25,5 | PT180 |
| 20,0 | 1,22 | 60,0 | 42,5 | 50,0 | 42,5 | 30,0 | 20,0 | 32,5 | 0,092 | 0,52 | EI60/21 | PT200 |
| 26,0 | 1,20 | 60,0 | 42,5 | 50,0 | 47,0 | 30,0 | 20,0 | 32,5 | 0,100 | 0,58 | EI60/25 | PT260 |
| 26,0 | 1,24 | 66,0 | 47,2 | 55,0 | 41,5 | 35,0 | 25,0 | 35,0 | 0,120 | 0,58 | EI66/18 | PT260 |
| 30,0 | 1,17 | 60,0 | 42,5 | 50,0 | 52,0 | 30,0 | 20,0 | 32,5 | 0,110 | 0,70 | EI60/30 | PT300 |
| 33,0 | 1,19 | 66,0 | 47,2 | 55,0 | 46,5 | 35,0 | 25,0 | 35,0 | 0,140 | 0,74 | EI66/23 | PT330 |
| 34,0 | 1,17 | 60,0 | 42,5 | 50,0 | 56,5 | 30,0 | 20,0 | 32,5 | 0,120 | 0,77 | EI60/35 | PT340 |
| 41,0 | 1,17 | 66,0 | 47,2 | 55,0 | 53,5 | 35,0 | 25,0 | 35,0 | 0,145 | 0,86 | EI66/30 | PT410 |
| 48,0 | 1,16 | 66,0 | 47,2 | 55,0 | 58,2 | 35,0 | 25,0 | 35,0 | 0,160 | 1,00 | EI66/34,7 | PT480 |
| 56,0 | 1,13 | 66,0 | 47,2 | 55,0 | 63,5 | 35,0 | 25,0 | 35,0 | 0,180 | 1,13 | EI66/40 | PT560 |
